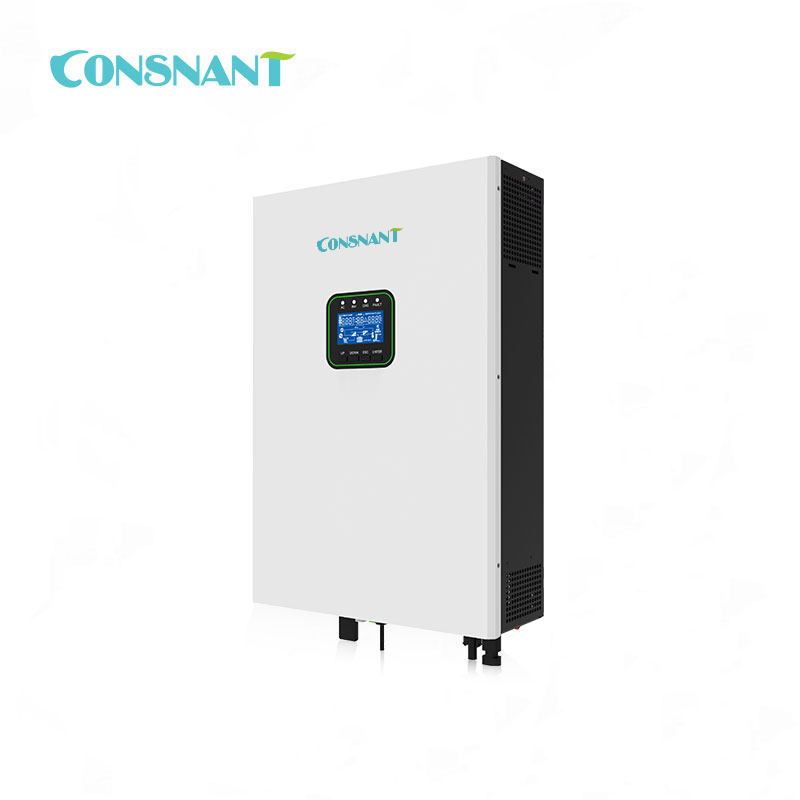

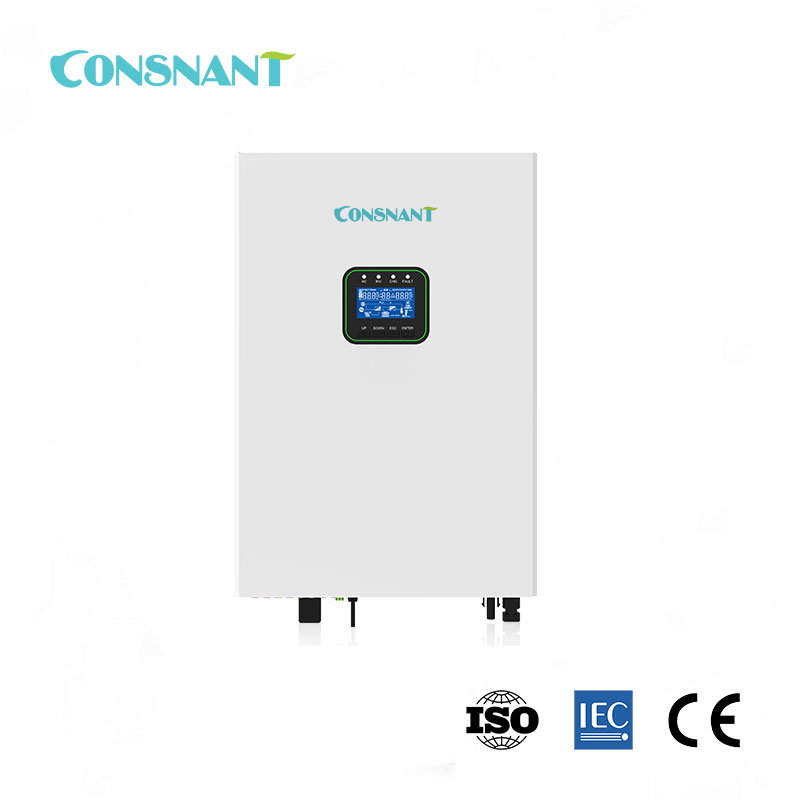

Off-Grid Hybrid Solar Inverter 4200W/6200W

Model

CNS110 4200-24

CNS110 6200-48

Rated Power

4200VA/4200W

6200VA/6200W

Output

Output Format

L+N+PE

Rated Output Voltage

220/230 ±5%

Output Frequency

50/60Hz±0.1%

Waveform

Pure Sine Wave

Transfer Time

10ms,20ms (Typical)

Peak Efficiency (Battery Mode)

>92.7%

>94%

No-load power consumption

<65W

<60W

AC Input

Input Format

L+N+PE

Rated Input Voltage

220/230

Input Voltage Range

Appliance mode: 90~280V; UPS mode: 170~264V

Input Frequency

50/60Hz(Auto Sensing)

Max. AC charging current

100A

80A

Solar charger & AC charger

PV Max. Input Power

5000W

6000W

MPPT Tracking Voltage Range

40-450VDC

120-450VDC

Solar Charging Type

MPPT

Max. PV Input Voltage

500VDC

Max. PV Input Current

18A

Max. PV Charging Current

100A

Max. AC Charging Current

100A

80A

Battery

Rated Voltage

24VDC

48VDC

Constant charging voltage (can be set)

28.2VDC

56.4VDC

Float charging voltage (can be set)

27VDC

54VDC

Environment

Humidity

20%-95% (Non-condensing)

Operation Temperature

-10~50℃（Reduce output power to 80% above 40℃)

Storage Temperature

-15~60℃

Physical

Dimension(W*H*D)(mm)

416*300*97mm

460*315*110mm

Net Weight (kg)

8.5

9.8

Communication Interface

Comm, Type-B, Dry contact, BMS
